GFCI and AFCI Outlets in Dallas, TX: Install, Test and Repair

Understand GFCI vs AFCI, fix a tripping outlet and add protection where code requires it.

  • Licensed & insured
  • Upfront flat-rate pricing
  • Same-day appointments
GFCI outlet with test and reset buttons installed at a kitchen counter

Need it handled today? Call +1 (614) 756-0643 · book online by email

Quick answer

A GFCI outlet cuts power in a fraction of a second when electricity leaks to ground, which prevents shocks, and an AFCI outlet or breaker shuts off power when it detects a dangerous arc from damaged wiring, which prevents fires. GFCI protection is required in kitchens, bathrooms, garages, outdoors, laundry areas and near sinks, while AFCI protection is required on most living area circuits in newer homes. Plumber Service TX installs and repairs GFCI and AFCI outlets and breakers across Dallas and Fort Worth, with a written flat rate quote first.

GFCI vs AFCI

GFCIAFCI
Protects againstShock and electrocution from ground faultsFires from arc faults in damaged or loose wiring
Typical locationsKitchens, baths, garages, outdoors, laundry, basements, near sinksBedrooms, living areas and most habitable rooms in newer homes
FormOutlet with test and reset buttons, or a breakerMostly breaker, also some outlets
Trips whenCurrent leaks even a few milliampsDangerous arcing is detected
Dual functionDual function breakers combine both protections

When to Replace a GFCI Outlet

  • It will not reset, or trips with no load
  • The test button does nothing
  • It is older than about 10 to 15 years
  • The outlet is discolored, warm or loose
  • Your home has outlets in wet areas without GFCI protection
  • A single GFCI that protects other outlets downstream is dead

Test GFCI outlets monthly by pressing the test button, which should cut power, then reset.

Need it handled today? Call +1 (614) 756-0643 · book online by email

Why Does a GFCI Keep Tripping?

  • Moisture in an outdoor or bathroom outlet
  • A damaged appliance or cord, such as a hair dryer or space heater
  • Water in a junction box or an exterior fixture
  • Wiring faults, including neutral problems
  • A failing GFCI
  • Too many devices downstream

Unplug everything and reset. If it holds, plug items back one at a time to find the problem. If it still trips, call us.

GFCI and AFCI Installation

  1. Identify which outlets and circuits need protection.
  2. Install GFCI outlets or breakers, wired correctly with line and load connections.
  3. Replace old two prong outlets with GFCI protected, properly labeled ones where grounding is absent.
  4. Test every device and label the panel or outlet.

See also electrical safety inspection.

GFCI Service Across Dallas Fort Worth

We serve Dallas and the surrounding area, including Fort Worth, Arlington, Frisco and Southlake. Related: panel replacement. Email service@plumberservicetx.com or call +1 (614) 756-0643.

How a GFCI Works

A ground fault circuit interrupter constantly compares the current flowing out on the hot wire with the current returning on the neutral wire. In a healthy circuit, the two are equal. If some current escapes through another path, such as through a person touching a live part, or through water, the return current is smaller. When the difference reaches about five milliamps, the GFCI opens the circuit in a fraction of a second, typically in about one thirtieth of a second. That speed is fast enough to prevent a fatal shock in most cases. The device does not need a ground wire to work, which is why it is used to protect older ungrounded circuits.

GFCI protection can come from a GFCI outlet, which protects itself and downstream outlets wired through its load terminals, from a GFCI circuit breaker at the panel, which protects the whole circuit, or from a portable GFCI plug on an appliance. Each has a test and reset function. A GFCI that will not reset, trips with no load or fails the test button is defective and should be replaced.

How an AFCI Works

An arc fault circuit interrupter looks for the electrical signature of dangerous arcing. Arcs happen when electricity jumps across a gap, as in a damaged cord, a loose terminal, a nail through a cable or deteriorated insulation. Arcs can reach thousands of degrees and ignite nearby materials, yet they may not draw enough current to trip a regular breaker. An AFCI has electronics that recognize the high frequency pattern of arcing and trip in milliseconds. Modern AFCIs are designed to avoid nuisance trips from normal arcs, such as in motors and light switches, although some older products and some appliances still cause trips.

AFCI breakers are the most common form, and some outlets provide arc protection too. Combination type AFCIs protect against series and parallel arcs. The National Electrical Code has required AFCI protection in bedrooms since 1999, and has expanded it to most living areas, kitchens and laundry areas in recent editions. Existing homes are not required to add it, but it is recommended, and code may require it when you extend or modify circuits.

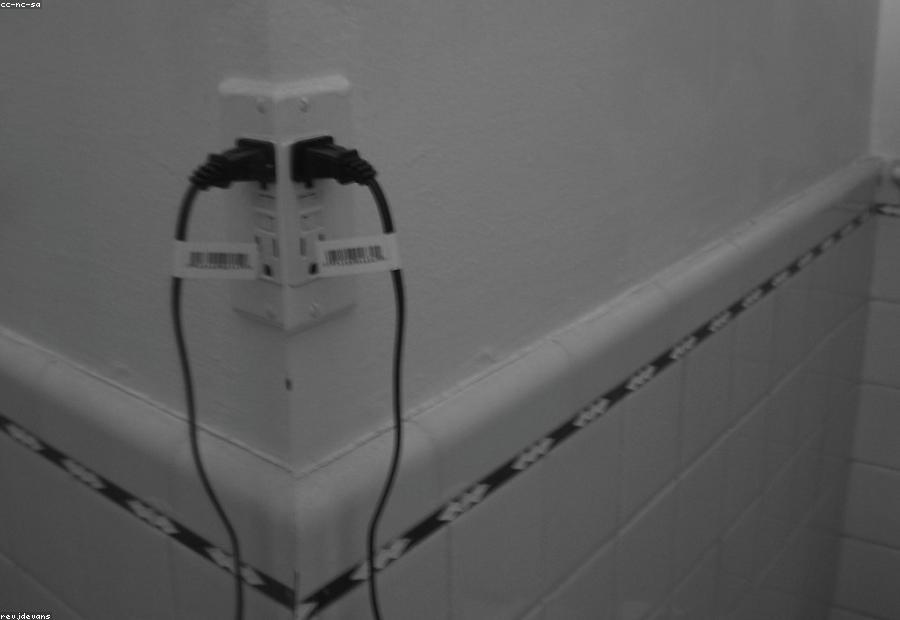

Where the Code Requires GFCI Protection

LocationRequirement for new work
BathroomsAll outlets
KitchensAll countertop outlets, and generally all outlets
Garages and accessory buildingsAll outlets
OutdoorsAll outlets
Crawl spaces and unfinished basementsAll outlets
Laundry areasOutlets, and often outlets near the sink
Within six feet of a sinkOutlets
Boathouses, pools, spas and fountainsOutlets, lighting and equipment, per special rules
Dishwashers and some other appliancesDedicated circuits, in recent code editions

Code editions and local amendments change, so we follow the rules adopted for your city. In an existing home, GFCI protection is not mandatory everywhere, but it is a low cost, high value upgrade in wet locations.

Why a GFCI or AFCI Keeps Tripping: A Troubleshooting Guide

SituationProbable causeWhat to do
GFCI trips when an outdoor outlet gets wetMoisture in the box or coverDry it, install a weatherproof in use cover, replace a corroded outlet
GFCI trips with a particular applianceLeakage in the appliance or a damaged cordUnplug it, test and replace or repair the appliance
GFCI trips by itself with nothing plugged inA failing device or a wiring faultReplace the GFCI, check wiring
Several outlets are deadA tripped GFCI that protects them, often in a bathroom or garageFind and reset the GFCI
AFCI breaker trips with a vacuum or a drillArcing in the motor brushes, or a loose connectionTry another outlet, check connections
AFCI trips at nightA damaged cord, a loose connection or a device on the circuitIsolate devices, inspect, call an electrician
GFCI will not resetA tripped condition, a failed device, no powerReplace it, and check the line
AFCI and GFCI trip togetherShared neutrals or miswiringHave a professional check the wiring

GFCI Outlet vs GFCI Breaker: Which to Choose

  • Outlet. Lower cost per device, easy to test at the location, and protects downstream outlets. It can be hard to reach if it is above a counter or in a garage ceiling, and it can mislead if its protected outlets are not labeled.
  • Breaker. Protects the entire circuit, including lights and hard wired devices, with testing at the panel. More expensive per circuit, and trips are less convenient to reset if the panel is far away.
  • Dual function breaker. Provides both AFCI and GFCI protection, which suits kitchens, laundry rooms and some bedrooms.
  • Self test GFCIs. Newer outlets test themselves and signal failure. They are recommended.
  • Weather resistant and tamper resistant. Required for outdoor and some indoor locations.

Installing GFCI and AFCI Protection: How We Do It

  1. Survey every outlet and circuit, and identify which are protected.
  2. Test existing GFCIs with a tester and the test button.
  3. Recommend devices and give a written flat rate quote.
  4. Turn off power and verify with a tester.
  5. Install devices with proper line and load connections, and label downstream outlets.
  6. Install a GFCI or AFCI breaker where required, with the right type for the panel.
  7. Test everything, and show you how to test monthly.
  8. Pull a permit where required.

Testing GFCI and AFCI Devices at Home

Safety devices only protect you if they work, and they can fail without notice. A monthly test takes a minute. Here is how to do it.

GFCI outlet test

  1. Plug a lamp or a radio into the outlet, and turn it on.
  2. Press the TEST button. The power should go off, and the lamp should turn off.
  3. Press the RESET button. Power should return.
  4. If the device does not trip when you press TEST, or will not reset, replace it. It is no longer protecting you.
  5. Test downstream outlets with a plug in tester, which has a GFCI test button.

GFCI and AFCI breaker test

  1. Find the breaker in the panel. It has a TEST button.
  2. Press it. The breaker should trip to the off position.
  3. Reset it by turning it fully off and then on.
  4. If it does not trip, replace it.

Portable GFCIs

Test them as you would an outlet, before use, and check the cord.

Keep a record on your phone or on the panel door of when you tested. Many families test on the first of the month, or when they change smoke alarm batteries.

Outdoor Outlets and Weatherproofing

Outdoor outlets face rain, heat, sprinklers and insects, and they are among the most common GFCI failures. A weather resistant outlet, with a UV stable face and corrosion resistant parts, is required outdoors, and it must have a cover that remains weatherproof when a plug is in use, called an in use or bubble cover. Check that the gasket is intact, that the box is sealed with caulk where it meets siding, and that there are no gaps where water can enter. Moisture in a box causes tripping and corrosion. In garages, hose bibs and sprinklers can spray outlets. Move or shield them where possible.

Pool, spa and fountain wiring has additional rules, including bonding and GFCI protection for equipment. Only a licensed electrician should handle it. See outdoor lighting for related exterior electrical work.

Ungrounded Outlets in Older Homes: Safe Options

Homes built before the 1960s often have two prong outlets with no ground. Replacing them with three prong outlets without a ground wire is a code violation unless they are GFCI protected and labeled. Options include the following.

OptionWhat it doesLimits
Keep two prong outletsMatches the wiringNo ground protection, and many modern devices have three prongs
Replace with a GFCI outlet, labeled no equipment groundProvides shock protection without a ground wireDoes not provide a ground for surge protectors, which need one to work well
Use a GFCI breaker on the circuitProtects the whole circuitSame limits for surge protectors
Run a new grounded cableA true groundMore work and cost
Rewire the homeA complete solutionHighest cost. See home rewiring

Be cautious about adapters that convert a three prong plug to two prongs. They remove the ground. We help choose the best option for each circuit, and tell you what is practical.

GFCI and AFCI Protection for Appliances and Special Circuits

  • Kitchen appliances. Dishwashers, disposals, microwaves and refrigerators may need GFCI protection, depending on code and location.
  • Laundry. Outlets for washers and dryers are covered in recent code editions.
  • Electric vehicle chargers. Many include built in ground fault protection. Others rely on the circuit. See EV charging stations.
  • Hot tubs and spas. Need GFCI protection on the circuit.
  • Sump pumps. Typically on a GFCI outlet, which can trip and stop the pump. Many installers use a dedicated GFCI with a monitor or an alarm. See sump pumps.
  • Refrigerators and freezers. A tripped GFCI can spoil food while you are away. Consider an alarm or a dedicated protected outlet.
  • Outdoor lighting and holiday lights. Use GFCI protected outlets.

GFCI and AFCI Services Across Dallas Fort Worth

We serve Dallas and the surrounding area, with teams in Fort Worth, Frisco and Southlake. See Fort Worth, Arlington, Frisco and Southlake. Related: electrical panel replacement, electrical safety inspection and electrical services. Email service@plumberservicetx.com or call +1 (614) 756-0643. Tell us the age of the home, the rooms with problems and any outlets that trip.

GFCI and AFCI Protection in Older Homes: Practical Upgrade Paths

Homes built before the 1990s generally have neither GFCI nor AFCI protection, except where added. Upgrading all circuits at once may not be practical, so a staged plan helps. Start with the highest risk locations, where water and electricity meet. Then move to circuits in bedrooms and living areas.

  1. Bathrooms, kitchens, garages, outdoors and laundry. Add GFCI outlets at the first outlet on each circuit, so all downstream outlets are protected. Label the protected outlets.
  2. Basements, crawl spaces and unfinished areas. Add GFCI protection.
  3. Outdoor and pool areas. Replace old outlets with weather resistant GFCI outlets and in use covers.
  4. Bedrooms. Where the panel allows, add AFCI breakers to bedroom circuits.
  5. Living areas and hallways. Extend AFCI protection as budget allows.
  6. Panel upgrades. When replacing a panel, add combination AFCI and GFCI breakers where code or good practice calls for them.

Not every old circuit works well with an AFCI. Shared neutrals, certain old wiring methods and loose connections can cause nuisance trips. Troubleshooting and fixing these makes the circuit safer, and a trip is a clue, not just an annoyance.

Tamper Resistant, Weather Resistant and Specialty Outlets

TypeWhat it doesWhere it is used
Tamper resistant outletShutters block objects inserted into one slotRequired in new homes and many remodels, recommended around children
Weather resistant outletCorrosion resistant, UV stableOutdoors, in damp locations
USB outletIncludes charging ports, saves adaptersBedrooms, kitchens, home offices
Surge protective outletBuilt in surge protection at the outletElectronics areas
Smart outletApp control, timers, energy monitoringLamps, appliances, small devices
Dedicated 20 amp outletT slot for 15 or 20 amp plugsKitchens, garages, laundry
240 volt outletsFor dryers, ranges, EV chargers, weldersDedicated circuits
Floor and counter pop up outletsHidden when not in useIslands, living rooms

Common Mistakes With GFCI Installation

  • Swapping line and load. Connecting the incoming power to the load terminals leaves the outlet unprotected or not working. Line is the power in, load is the protected downstream.
  • Not labeling protected outlets. People do not know why an outlet is dead, and which GFCI to reset.
  • Using a GFCI where it can nuisance trip a critical load, such as a freezer, without an alert.
  • Putting a GFCI on a shared neutral. It will trip. Fix the wiring.
  • Using a GFCI on an ungrounded circuit without the required label.
  • Leaving a GFCI uncovered outdoors, or with a cover that does not seal.
  • Not testing after installation.
  • Ignoring repeated trips, which are a warning of a fault.
  • Installing a non weather resistant outlet outdoors.

Electrical Shock and Why GFCI Matters: A Closer Look

Electric shock injures by passing current through the body. The effect depends on the amount of current, the path through the body, and the time. A current of just a few milliamps can be felt, and 10 to 20 milliamps can cause muscles to lock, so a person cannot let go. Currents of 50 to 100 milliamps or more across the chest can cause ventricular fibrillation, which is often fatal. A standard breaker trips at 15 or 20 amps, which is about a thousand times higher than the level that can kill. A GFCI trips at about 5 milliamps, in a fraction of a second, which is fast enough to prevent the most serious injuries. Wet conditions lower the body’s resistance and increase risk. That is why GFCI protection matters most near water, outdoors and in garages. It is a small device that has saved a great many lives since it became standard in homes.

GFCI and AFCI Maintenance, Replacement and Recalls

Safety devices wear out and, like other products, are sometimes recalled. Test GFCI and AFCI devices monthly, and replace any that fail the test. Many GFCI outlets last 10 to 15 years. Newer models include a status light or an audible alert if protection is lost, which is helpful, because an old GFCI can stop protecting while still delivering power. When you replace a device, choose a self testing model. Check the manufacturer’s recall notices if you hear about a defect. Make sure the replacement fits the box and the circuit, and has the right current rating. A 15 amp GFCI on a 20 amp circuit can be acceptable in some arrangements, but a 20 amp outlet on a 20 amp circuit is the usual choice for kitchens and garages.

Signs it is time to replace a GFCI or AFCI

  • It will not reset, or it trips without reason.
  • The test button does nothing, or the reset button is loose.
  • The face is discolored, cracked or warm.
  • It is more than 10 to 15 years old.
  • It does not hold a plug well.
  • It buzzes or makes noise.
  • The status light signals a fault.

Frequently Asked GFCI Questions

Does a GFCI protect me from all shocks?

It protects against ground faults, which are the most common. It does not protect against contact with both hot and neutral at the same time, so respect electricity.

Can I put a GFCI on a circuit with a heavy load, such as a freezer?

Yes, but use a dedicated circuit and consider an alarm to warn you of a trip.

Where is the best place to put the GFCI on a circuit?

At the first outlet after the breaker, so downstream outlets are protected.

What if I have a two wire circuit with no ground?

You can install a GFCI outlet and label it no equipment ground. See the options above.

GFCI Outlets — Frequently Asked Questions

How many outlets can one GFCI protect?

Several, within the circuit rating, when wired through the load terminals.

Do GFCI outlets work during power outages?

They stop with the power. They reset after power returns, and may need manual reset.

Can I use a GFCI outlet for a washing machine?

Yes, though nuisance trips can happen with some older machines. A dedicated, correctly wired GFCI outlet is safest.

What does it mean if a GFCI trips every time I use a certain appliance?

The appliance may have a ground fault or damaged cord. Test it on another GFCI, and replace or repair it.

Are plug in GFCI adapters good enough?

They are a temporary fix. A permanent GFCI outlet or breaker is better.

How often should I test a GFCI?

Monthly. Press test, confirm that power cuts off, then reset.

Can I replace a GFCI outlet myself?

Many homeowners can, but line and load connections must be right. If you are not sure, call an electrician.

What does CO ALR mean on an outlet?

It marks devices rated for use with aluminum wiring.

Are GFCI outlets required in a rental?

Requirements follow local code and the age of the building. Landlords should keep them in working order.

Why does my garage GFCI trip in the rain?

Moisture in outdoor fixtures, outlets or wiring on the same circuit. We trace and fix it.

Can a GFCI outlet protect a freezer or refrigerator?

It can, but a trip can cause food loss. Use a monitoring device, or a dedicated circuit with the right protection.

Why is my bathroom outlet not working?

A GFCI protecting it, perhaps in another bathroom or the garage, may have tripped. Press reset.

Are AFCI breakers worth it in an older home?

They add protection against arc fires, and they are worthwhile when you can install them. Compatibility with old wiring may require a check.

Do GFCI outlets wear out?

Yes. Many last 10 to 15 years. Test monthly and replace when they fail.

Why does my AFCI trip when I use a vacuum?

Some motors create arcs that older AFCIs misread. Newer models reduce this. An electrician can check the circuit.

Can a GFCI protect outlets on the same circuit?

Yes, if wired on the load terminals, so label them.

Do I need GFCI in a laundry room?

Code requires it in many cases. Ask us about your home.

What is an AFCI outlet?

A device that detects dangerous arcing from damaged or loose wiring and cuts power to prevent electrical fires.

What is the difference between GFCI and AFCI?

GFCI protects people from shock from ground faults. AFCI protects the home from fires caused by arcs.

How much does GFCI outlet installation cost in Dallas?

It depends on the number of outlets and wiring. Plumber Service TX gives a written flat rate quote, and you approve it first.

Where are GFCI outlets required?

Kitchens, bathrooms, garages, outdoors, laundry areas, basements and near sinks, per code.

How do I test a GFCI outlet?

Press the test button. Power should cut off. Press reset to restore it.

Why will my GFCI not reset?

A wiring fault, moisture, a downstream problem or a failed outlet.

Can I replace a GFCI myself?

Wiring must match line and load correctly. If you are not sure, call an electrician.

Do older homes need GFCI outlets?

They are strongly recommended in wet areas, and required when work or remodels trigger code updates.

Need gfci outlets in DFW today?

Email service@plumberservicetx.com and our dispatch team will confirm your same-day or next-day appointment window.
