Electrical Panel Replacement in Dallas–Fort Worth
The panel is your home’s power headquarters — and thousands of DFW panels are full, obsolete or genuinely hazardous. We replace them safely, to code, sized for what’s coming next.
- Licensed & insured
- Upfront flat-rate pricing
- Same-day appointments
Need it handled today? Call +1 (614) 756-0643 · book online by email
Quick answer
Your electrical panel distributes power to every circuit in your home and protects wiring with breakers. Consider replacing it if breakers trip often, the panel is hot, rusty, buzzing or scorched, it uses fuses or a known problematic brand, or you plan to add loads such as an EV charger, a larger air conditioner or a generator. Plumber Service TX replaces and upgrades panels across Dallas–Fort Worth with licensed electricians, permits and inspections, and a written flat-rate quote approved before work begins.
What Does an Electrical Panel Do?
Power from the utility enters your home through a meter and a main disconnect, then feeds a panel, also called a breaker box or load center. Inside, metal bus bars distribute power to individual circuit breakers, each protecting a circuit that serves outlets, lights or appliances. A breaker trips when a circuit draws too much current or detects certain faults, cutting power before wires overheat. The panel also provides the connection to the grounding system, which is essential for safety.
The panel’s size, measured in amps, sets the maximum current the house can draw at once. Older homes often have 60 or 100 amp service. Modern homes commonly have 150 or 200 amps, and larger homes may have more. A panel is not a place for improvisation. Its design, brand, condition and installation determine whether a short circuit is handled safely or becomes a fire.
Signs Your Panel May Need Replacement or Upgrade
- Frequent breaker trips, particularly the main breaker or several breakers.
- Fuses instead of breakers, or fuses that were replaced with larger ones than the wiring allows.
- A panel that is hot, buzzing, crackling or smells like burning.

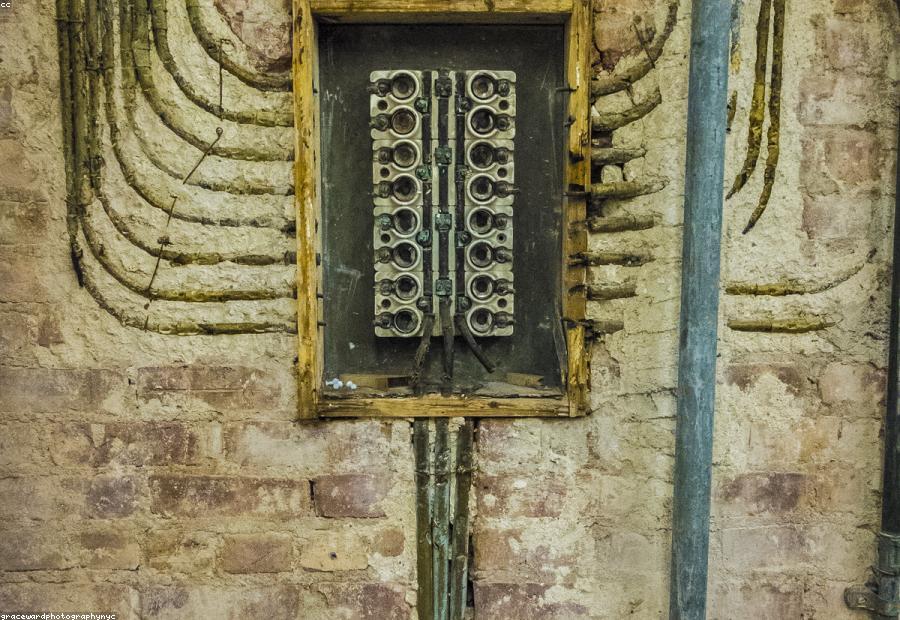

- Rust, corrosion, water stains or scorch marks on or in the panel.
- Breakers that do not reset, or feel loose or mushy.
- Flickering or dimming lights when large appliances start.
- A panel that is full, with no spaces for new circuits, or with double-tapped breakers.
- A panel of a brand with known safety concerns. An electrician can identify these.
- An old service of 60 or 100 amps that cannot support modern loads.
- Plans for major additions: an EV charger, a pool, an addition, a larger air conditioner, electric cooking or a generator.
If your panel is hot to the touch, buzzes loudly or you smell burning, turn off nonessential loads, avoid touching the panel and call an electrician immediately. If there is smoke or fire, call 911.
Need it handled today? Call +1 (614) 756-0643 · book online by email
Panel Upgrade, Panel Replacement or Service Upgrade: What Is the Difference?
| Project | What changes | When it is used |
|---|---|---|
| Panel replacement | New panel of the same amperage in place of an old one | Old, damaged or problematic panel with adequate service size |
| Panel upgrade | Larger panel with more spaces and higher capacity | Need more circuits or more capacity |
| Service upgrade | New service entrance, meter base, conductors and panel, for example 100 to 200 amps | Increased load or code requirements; may require coordination with the utility |
| Subpanel addition | An additional panel fed from the main | Adding circuits to an addition, garage or workshop |
| Load management device | Controls large loads so they do not exceed capacity | Alternative to a service upgrade for certain EV or appliance loads |
We evaluate your needs and recommend the least costly solution that is safe and adequate. A load calculation is the starting point. Sometimes a smart load management device solves a charger problem without a service upgrade. Other times a full service upgrade is the correct answer.
Why Do Some Panels Pose Safety Concerns?
Over the decades, some panel designs have developed safety reputations. In some, breakers may fail to trip under overload, creating fire risk. Others have bus bar designs that overheat or corrode. Older fuse boxes lack modern protection and are easy to defeat by installing oversized fuses. Aluminum branch wiring from certain eras requires special connectors and care. Whether a given panel in your home is a concern requires inspection by a qualified electrician who knows the history of brands and models and can see its condition. We do not alarm customers unnecessarily, and we do not ignore real problems. If we find a hazard, we explain what we see and why, and give you a written quote to correct it. Your insurer may also have requirements for certain panels, so ask them if you are unsure.
Need it handled today? Call +1 (614) 756-0643 · book online by email
How Does a Panel Replacement Work?
- Evaluation and load calculation. We inspect the panel, wiring, grounding and service, and calculate the current and future loads.
- Written quote. It lists the panel, breakers, permit, utility coordination, grounding work and warranty.
- Permit and scheduling. We pull the permit and coordinate with the utility for a power shutoff and reconnect, which is required for service work.
- Power shutoff. The utility disconnects service at the meter if required, or we coordinate scheduled interruption. Plan for several hours without power, commonly a day for upgrades.
- Installation. We remove the old panel, install the new one, connect branch circuits, label them and install the proper grounding and bonding.
- Protection devices. We install arc-fault and ground-fault breakers where required, and surge protection if you choose it.
- Inspection. The city inspector verifies the work. The utility reconnects the service.
- Testing and documentation. We test circuits, give you the directory and explain the new panel.
What Features Should a Modern Panel Have?
- Adequate capacity and spaces for current and future circuits.
- Arc-fault circuit interrupter protection where code requires it, to reduce fire risk from arcing faults.
- Ground-fault protection for kitchens, bathrooms, garages, laundry and outdoors.
- Whole-house surge protection installed at the panel. See surge protection.
- Proper grounding and bonding, including connections to the grounding electrode system.
- Clear labeling of every circuit.
- Space and wiring for a generator interlock or transfer switch, if you plan a generator. See generators.
- Smart panel features such as load monitoring in some models.
Need it handled today? Call +1 (614) 756-0643 · book online by email
Panels and Big New Loads: EV Chargers, Heat Pumps and Generators
Many panel upgrades are triggered by a specific project. An EV charger adds a continuous load that can be 30 to 50 amps or more. A new heat pump or air conditioner may need a larger circuit. A tankless electric water heater requires a large dedicated circuit. A hot tub, a workshop or a home addition adds circuits and load. If your service is already near its capacity, these additions can overload the system. A load calculation determines the real figures, because many homes have more spare capacity than you would think, and others have less. Options range from adding a circuit, to installing a load management device, to upgrading the panel or service. We explain each option and its cost so you can choose. See EV charger installation and ductless mini-splits.
What Does Panel Replacement Cost?
The price depends on the amperage, number of circuits, condition of existing wiring, grounding requirements, the location and accessibility of the panel, whether the meter base or service entrance needs replacement, permit fees and utility coordination. Replacing a panel in a garage with easy access is quite different from a service upgrade that moves the meter and includes a new mast and conductors. We provide a written flat-rate quote after inspection. When comparing quotes, confirm the amperage and number of spaces, whether arc-fault and ground-fault breakers are included, who pulls the permit, whether surge protection is included and the warranty. Avoid contractors who suggest skipping permits and inspections. They protect you.
Understanding Amps, Volts and Load in Plain Language
Electrical terms can feel abstract, so here is a simple picture. Voltage is the pressure pushing electricity through the wires. Amperage, or amps, is the amount of electricity flowing, comparable to the volume of water through a pipe. Watts, the unit on appliance labels, are volts multiplied by amps. A typical home in the United States is served with 240 volts at the service entrance, split into two 120-volt legs. A 200-amp service can deliver a very large total current, but each circuit has its own limit set by its breaker and wire size.
Load is the total current drawn by everything that is on at the same time. An electric oven, a dryer, a water heater and an air conditioner running together draw a lot. A load calculation, based on codes and the appliances in the house, determines the minimum service size, and it uses diversity factors because not everything runs at once. Many homes with a 100-amp service were fine when they had one air conditioner and gas appliances, but become strained after adding an EV charger, induction cooking and a heat pump. Understanding load is why we do a calculation, not a guess, before recommending a panel size.
Grounding, Bonding and Why They Matter
A panel is not safe if the grounding and bonding are not right. Grounding connects the electrical system to the earth through a grounding electrode, such as ground rods or a metal water pipe where allowed, to help stabilize voltage and dissipate lightning and surges. Bonding connects metal parts, such as the panel enclosure, water pipes and gas piping, to create a low-resistance path so that a fault trips the breaker quickly instead of energizing metal surfaces. In older homes, grounding may be missing, corroded or modified. During a panel replacement, we inspect and upgrade the grounding electrode system and bonding to current code. This is one reason an experienced electrician is needed. It is also why properly installed surge protection works best on a well-grounded system. See surge protection.
Need it handled today? Call +1 (614) 756-0643 · book online by email
What You Can Do to Prepare for a Panel Replacement
- Clear access around the panel, at least three feet in front, and keep the area free of storage.
- Plan for the outage. Unplug sensitive electronics, and make arrangements for refrigerators and medical equipment.
- Notify household members and anyone working from home.
- Gather information about existing circuits and any problems you have noticed, such as outlets that do not work.
- Tell us about planned additions so we can size the panel and leave space for them.
- Check HOA or city rules that might affect the meter or service location.
Why Choose Plumber Service TX for Panel Work?
- Licensed electricians. Texas electricians are licensed through the Texas Department of Licensing and Regulation.
- Load calculations before recommendations.
- Permits and inspections handled, with utility coordination.
- Written flat-rate quotes approved before work begins.
- Insured and background-checked technicians.
- Written workmanship warranty.
See all electrical services, safety inspections and rewiring. We serve Fort Worth, Arlington, Frisco, Southlake and the metroplex.
Electrical Panel Replacement — Frequently Asked Questions
How do I know if my electrical panel needs to be replaced?
Warning signs include frequent breaker trips, heat, buzzing, rust or scorch marks, fuses, a full panel or a plan for large new loads. An electrician should inspect it.
How much does an electrical panel replacement cost?
Cost depends on amperage, circuits, condition of wiring, service entrance work and permits. We give a written flat-rate quote after inspection and before work begins.
How long does a panel replacement take?
Many replacements take most of a day, and service upgrades may take longer. You will be without power for part of that time.
Do I need a permit for a panel upgrade?
Yes. Panel work requires permits and inspection, and utility coordination is often needed. We handle this.
What size panel do I need?
Many modern homes use 150 or 200 amps, but the right size depends on a load calculation, including planned additions.
Can my panel handle an EV charger?
Maybe. It depends on available capacity. We calculate it, and options include a new circuit, load management or a panel upgrade.
What is an arc-fault breaker?
It detects dangerous arcing in wiring or cords and shuts off the circuit to reduce fire risk. Codes require them in many areas of the home.
Is a fuse box unsafe?
Fuse boxes are not automatically unsafe, but they lack modern protection, offer limited capacity and can be tampered with by using oversized fuses. Many homeowners upgrade.
Will upgrading my panel lower my insurance?
Some insurers require or favor certain panel types, and some may offer discounts. Ask your insurance agent.
Can I replace a panel myself?
No. Panel work is dangerous and requires licensing, permits and inspection. Do not attempt it.
